| Weight | 12.8 kg |
|---|---|
| FEATURES | ARC™ Anthem Room Correction 4 Speaker Profile Memories Two Sub Out Jacks (parallel) Premium 32-bit / 768 kHz Differential-Output D/A Converters |
| HDMI & Video | HDMI 2.0a HDCP 2.2 4:4:4 Subsampling at 4K60 (18.2 Gbps) High Dynamic Range (HDR) Dolby Vision™ Compatible Hybrid Log Gamma (HLG) BT.2020 Color Gamut On-Screen Display with 4K 50/60 4K 50/60 Switching |
| Decoding | Dolby TrueHD DTS-HD Master Audio |
| Listening Modes | AnthemLogic – (5.2 channels with MRX 520) Dolby Surround Dolby Pro Logic II on MRX 520 DTS Neo:6 – Cinema, Music All-Channels – All-Speaker Stereo |

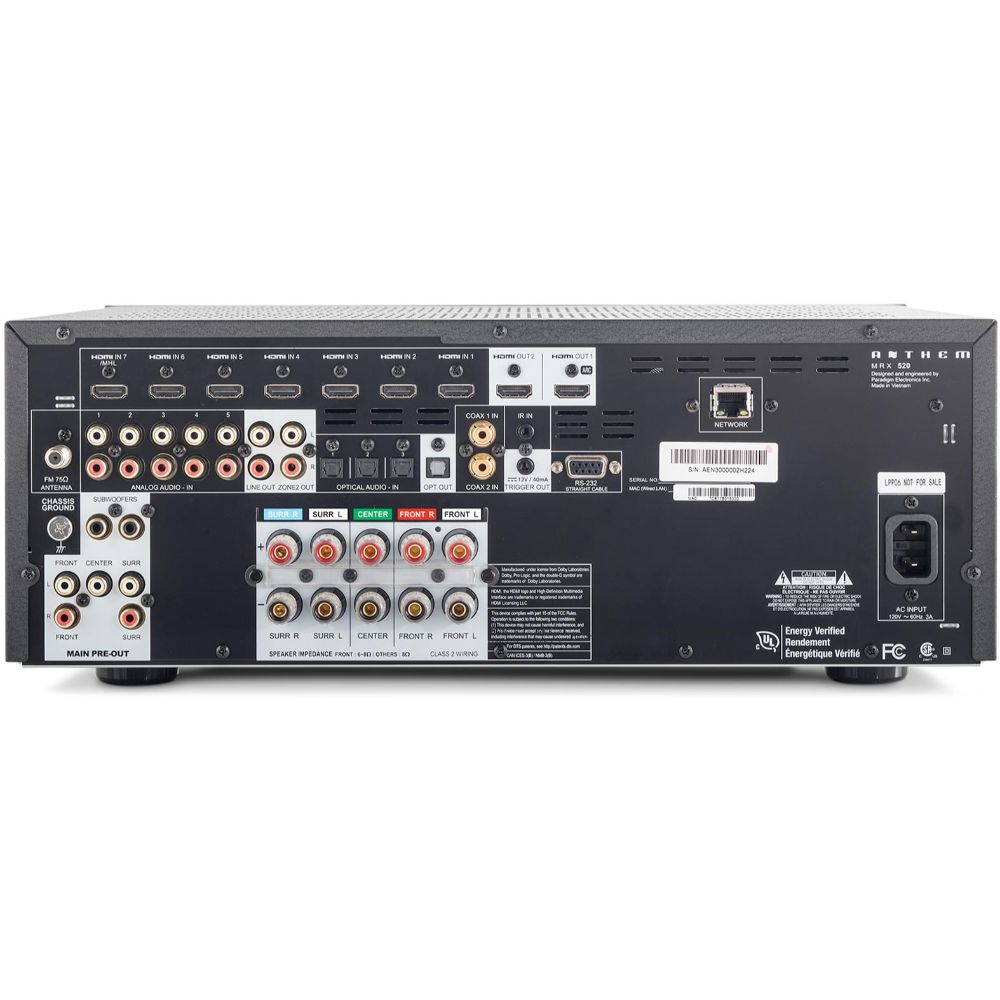

| INPUTS | 7 HDMI inputs (7 rear inputs on MRX 520) Digital Audio Inputs: 2 Coaxial + 3 Optical 5 Stereo Analog RCA Inputs HDMI On-Screen Display – setup, Adobe RGB, Adobe YCC601, Deep color 2 Parallel Outputs Consumer Electronic Control (CEC) Audio Return Channel Standby Pass-through, song/artist info from radio stations MHL Supported Inputs xvYCC, status, sYCC601, video adjustments |
| Custom Installation | IP Control RS-232 Control IR Input (Configurable) 12V Trigger Output Control System Drivers |
| Additional Features | Backlit Remote Control Sidemount Rack Kit (sold separately) |
| Maximum Output | (<0.1% THD) 4.2 Vrms, subwoofer channel 5.2 Vrms |
| Frequency Response | -0.25 dB), (2 Vrms output) 10 Hz — 31 kHz (+0 |
| S/N Ratio | 110 dB |
| Output | -88 dB |
| Max Continous Output | Channels 1-5, Two Driven into 6 Ohms – 130 W, Two Driven into 8 Ohms – 100 W Channels 1-5 |
| POWER CONSUMPTION | Typical Load – 365 W Standby – 0.3 W Standby IP Control Enabled – 2.4 W Standby HDMI Bypass Enabled – 5.8 W |
| Dimensions (HxWxD) | 6-1/2" (16.5 cm) x 17-1/4" (43.9 cm) x 14-3/4" (37.5 cm) |

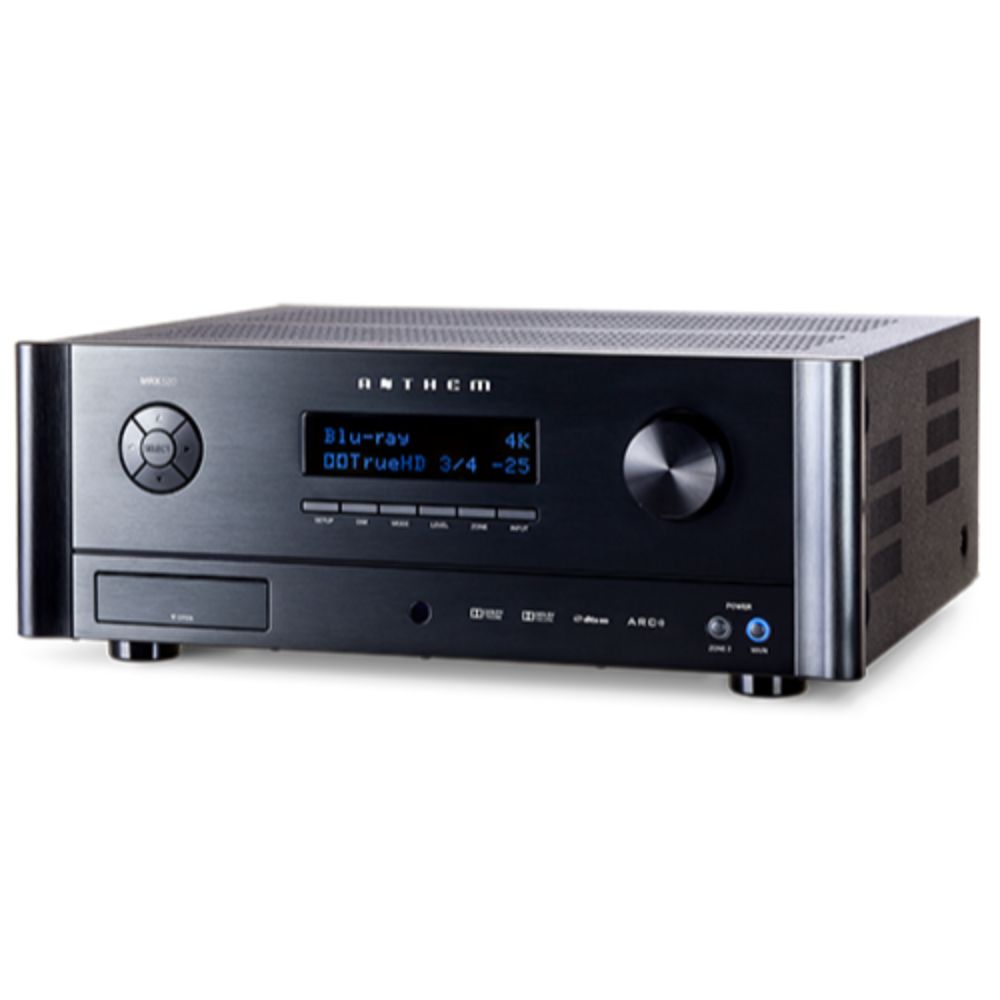

MRX 520
₹159,000.00
5.2 Pre-Amp / 5 Amplifier Channel A/V receiver with ARC (Anthem Room Correction). 100 watts per channel continuous power into 8 ohms.
