By replacing the former model, the 99W10.16, the 10.17 has to fulfill very high expectations concerning power and accuracy. To elicit very deep bass with a high sound pressure level from a subwoofer that has a more aesthetic size is a challenge. The driver of the 10.17 has to be powerful yet very rigid and at the same time extremely lightweight to achieve the highest precision and maximum power. Therefore, a driver which originates from the famous Cinema series which is able to achieve this high set of goals is used. The powerful, yet energy efficient amplifier works in Class-D and provides 500W RMS and 800W peak power. No matter whether for a stereo system or home cinema, the 10.17 combines very powerful bass with the highest precision and flexibility due to its sound tuning possibilities.
Description
Additional information
| Weight | 19.5 kg |
|---|---|
| Construction Type: | 10" aktiv hybrid subwoofer (Bassreflex / Sealed) |
| Color | gloss black, matte black, matte white |
| Power | 800 W Peak / 500 W RMS, Class-D |
| Dimensions (H x W x D) | 320 x 430 x 380mm (W x H x D) / 12.7 x 17.1 x 15.1" (Height incl. spikes) |

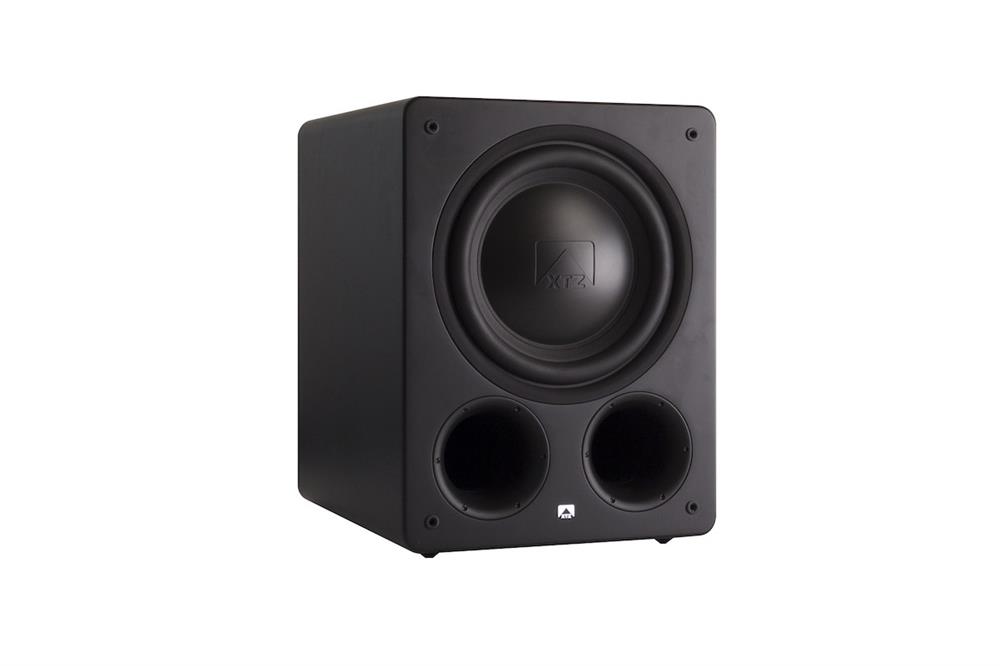

| Drivers | 1 x 250 mm (10") High-Speed Ultra-Long-Stroke driver (Polymer reinforced cotton) |
| Frequency Response | 20 – 160 Hz (+/- 3dB) |

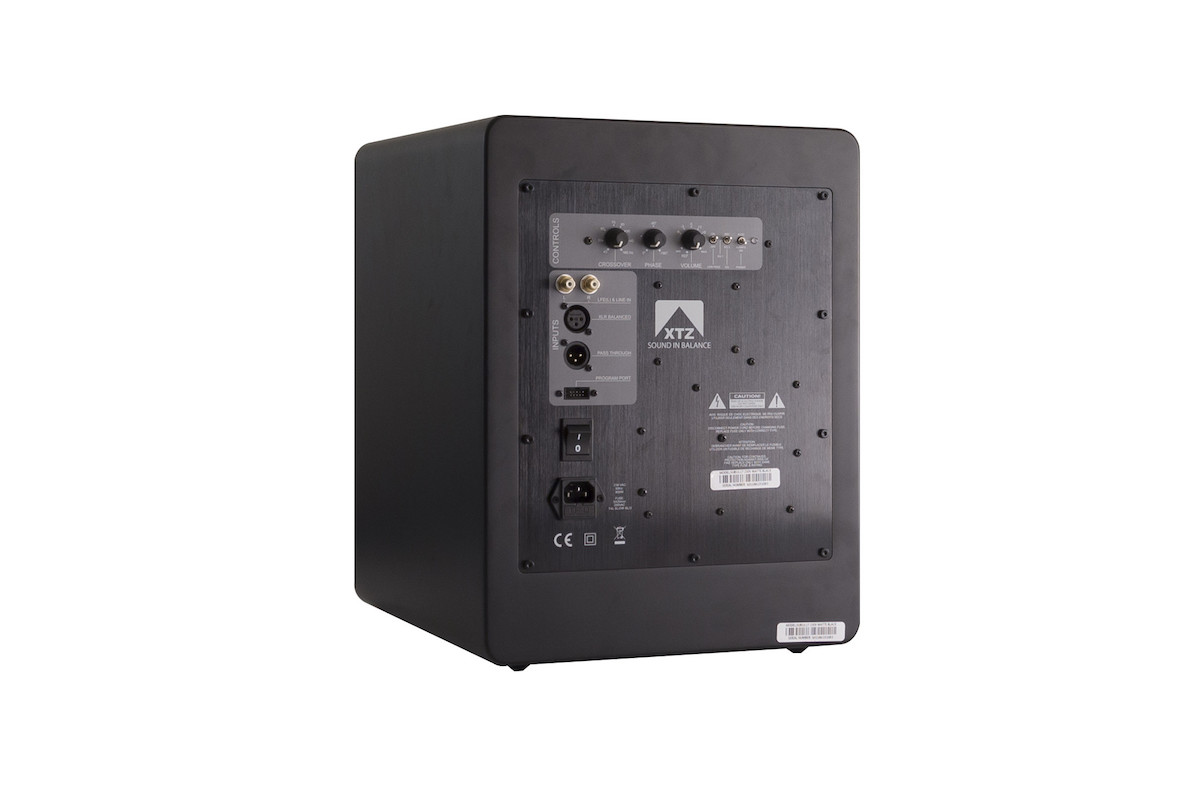

| Connections | 2 x RCA, XLR, XLR-Passthrough |
| Settings | 3 x EQ (REF, Bassreflex / Sealed (2 ports), EQ1, EQ2) |
| CROSSOVER FREQUENCY | Bypass, Variable 40 – 160Hz |
