| POWER: 4 OHM | 110 W before clipping |
|---|---|
| POWER: 8 OHM | 80 W before clipping |
| THD AT RATED POWER | 0.01% |
| Dimensions (H x W x D) | 66 x 442 x 385 mm |
| MAX INPUT | 3 V |
| INPUTS - ANALOG | 2 x RCA stereo; 1 x Mini EP stereo |
| INPUTS - DIGITAL | 24 bit, Coaxial – SPDIF type, maximum sampling frequency 96 kHz; Optical – SPDIF type, maximum sampling frequency 96 kHz; USB – Audio class 1.0 |
| CONTINUOUS POWER HANDLING | 125 W x 2 @ 4 Ohm; 85 W x 2 @ 8 Ohm |
| OUTPUTS | 1 x XLR balanced stereo; 1 x RCA unbalanced stereo; 1 x Mini EP stereo; 2 x speaker socket |
| GAIN | 0 dB |
| CHANNEL SEPARATION | 60 dB |
| CROSSTALK | 80 dB |
| HEADPHONE OUTPUT | 400 mV into 32 Ohms |
| VOLUME CONTROL RANGE | 70 dB |
| SIGNAL TO NOISE RATIO | (ANALOG) A-weighted : 95 dB, referred to maximum output, referred to maximum output (DIGITAL) A-weighted : 115 dB |

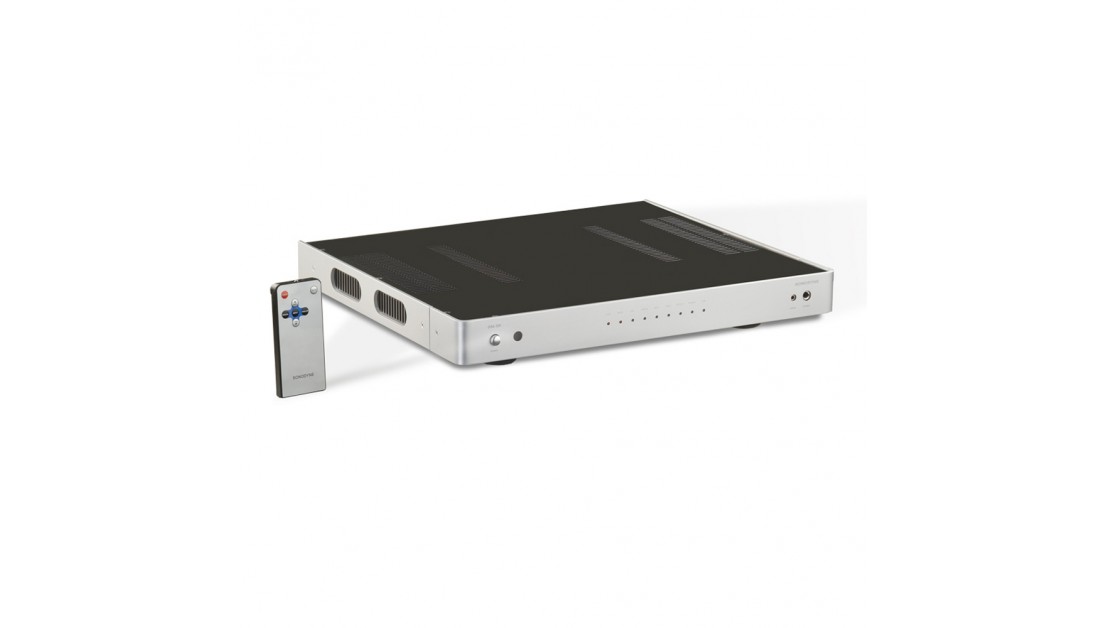

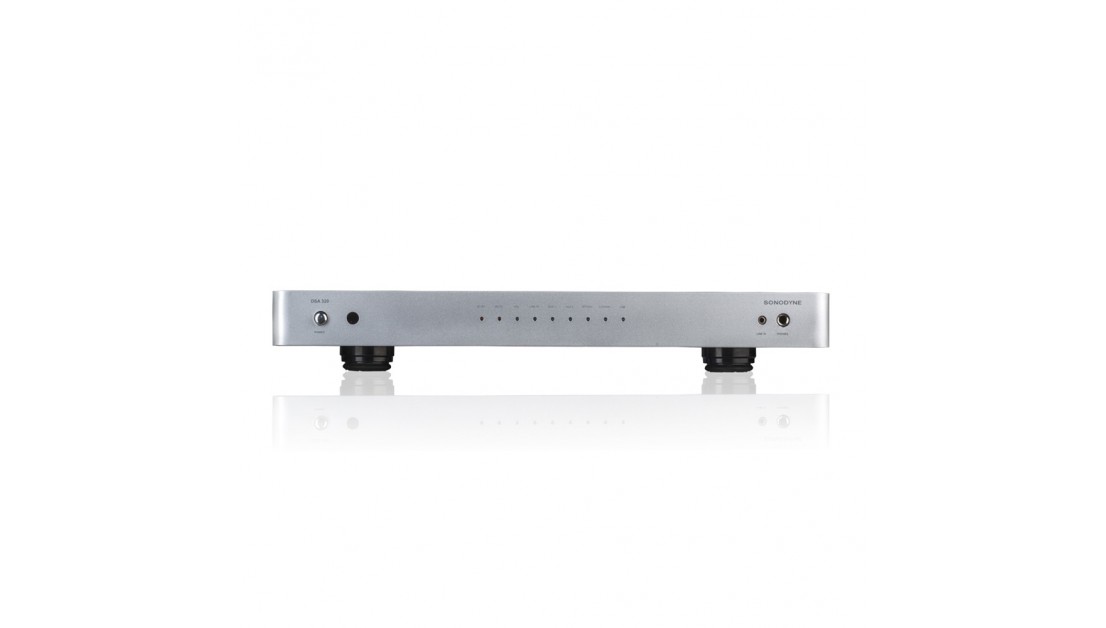

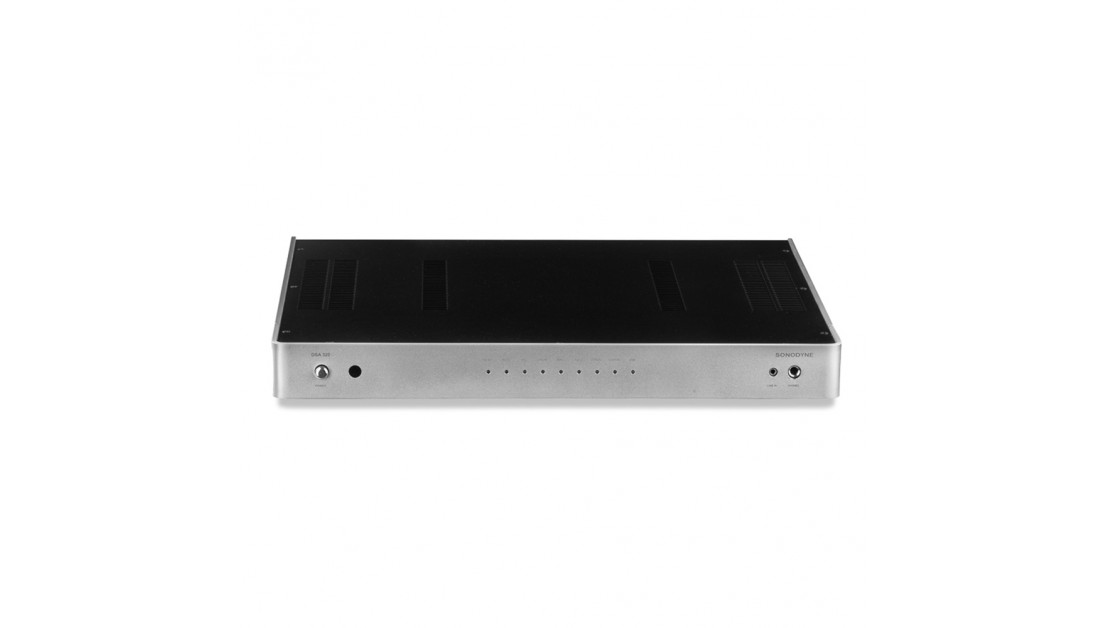

DSA 320
₹38,665.00
We are proud to announce our newest integrated amplifier, the DSA 320. At a slim 1.7″, it employs a large toroidal transformer and intelligent heat sinking to deliver, noiselessly, oodles of power with excellent headroom. Both analogue and digital inputs (optical, coaxial, USB) are present with i/p selection and level control on remote. A minimalistic design with aluminum extrusion edges gives it an elegant look worthy of your mantlepiece
